Durability of water-resistive barriers

by Katie Daniel | January 29, 2015 11:06 am

wrb_file opener[1]
Images courtesy Building Diagnostics

by Beth Anne Feero, EIT and David H. Nicastro, PE
Many new water-resistive barrier (WRB) products are being introduced, including liquid-applied membranes. These new products join traditional wraps, self-adhered membranes, felts, and building paper, making for a crowded marketplace. A WRB will be concealed behind cladding, where it cannot be inspected, maintained, or replaced, so it must last for the design life of the building. However, will the new products be durable?

WRBs are required by building codes, and are installed on nearly every building, so it is surprising the industry lacks standardized tests for many fundamental properties of WRB products. To evaluate their performance, 17 WRB products (new and old) were tested in various common construction details, along with accessory products (flashings, tapes, and sealants). This long-term study is ongoing, but has already yielded important observations.

Product selection
As its name implies, the purpose of a WRB is to stop liquid water from penetrating through a wall section. However, more products are sold as air barriers, with a corollary benefit of serving as a WRB—and, in some cases, as a vapor barrier. The products included in this study were confirmed with the manufacturers to function as WRBs, but their marketing literature does not always make that clear. As this industry is rapidly evolving, there is some confusion as to the terminology and functions of these products (Figure 1).

wrb_Fig 1 - rolling[2]
Figure 1: This photo shows a water-resistive barrier (WRB) being applied—?or is it an air barrier? Or vapor barrier? Or weather-resistive barrier? Similar products are marketed differently and can have different capabilities, so the functions must be verified with the manufacturer. Images courtesy Building Diagnostics

The 2012 International Building Code (IBC) states that in typical sheathing applications, “a minimum of one layer of No. 15 asphalt felt, complying with ASTM D226, Standard Specification for Asphalt-saturated Organic Felt Used in Roofing and Waterproofing, for Type 1 felt or other approved materials, shall be attached to the studs or sheathing.” A similar statement is found in the International Residential Code (IRC). For stucco and masonry veneer applications, both codes require wood-based sheathing “include a water-resistive vapor-permeable barrier with a performance at least equivalent to two layers of Grade D paper.”

Many buildings are still being constructed with felt or building paper serving as the WRB. However, the industry is shifting toward products that can also serve as an air barrier—sometimes called ‘weather-resistive barriers.’ For their WRB function, these products have to be approved by building officials based on test reports demonstrating they perform as well as paper or felt. This does not seem like a very high bar, but it could be if durability were considered instead of just initial test results (Figure 2).

wrb_Fig 2 - WRB behind masonry[3]
Figure 2: Once the masonry installation is complete, this WRB will be hidden, so it will need to last for the life of the building. The product was just introduced, but only long-term testing can verify design life.

Even if they provide only marginal waterproofing, paper and felt have been in service for decades, so their long-term behavior is well-established. By comparison, a few of the new WRBs have suffered various forms of product failure soon after application, resulting in manufacturers revising the formulations or application instructions (Figure 3).

wrb_Fig 3 - split joint[4]
Figure 3: A WRB split at the sheathing joints before cladding was installed, which points to a concern about the robustness of thin barrier products. The manufacturer of this then-new product helped resolve the problem, and updated its recommendations for how to treat sheathing joints.

For this study, products were selected based on criteria that would be considered by designers and contractors for a multi-family building—one of the largest segments of the construction industry. (Most of these products would also be appropriate for large commercial projects, as well.) Research narrowed the products to those believed likely to continue to be sold in their present formulation—since some test results will not be attainable for several years, it would be pointless to invest in long-term testing of products that seemed questionable during the research phase. Additionally, products with a short allowable exposure time before cladding were eliminated because newer materials are being introduced with longer exposure time. As research indicates other viable products, they will be tested in the future.

Interpreting manufacturer’s instructions
Field investigations suggest most failures are caused by ‘what is on the outside of the can’—in other words, even the best products fail prematurely when the installation instructions are not clear (or followed). Sufficient information from the manufacturer is needed for correct use, including which accessory products are required and appropriate design details for typical penetrations, edges, and openings. Providing explicit, concise, and comprehensive instructions for the designer and installer is essential, but rare.

Before the test specimens were constructed, extensive time was spent researching the manufacturers’ publications. Some of the conditions being tested were not found in the instructions and details. For other products, there were multiple accessory choices that were not clearly defined, leading to possible wrong selections. For most of the products studied, it was necessary to contact the manufacturer to confirm the selections; in some cases, the technical support representatives contradicted the published information (and each other when both local and home-office personnel were contacted). While it is always a good design practice to involve the manufacturer, it would be better for the industry if these common details were clearly conveyed.

Another problem is some of the instructions provided are unrealistic. For example, several of the selected products require special detailing around brick ties, which is not economically viable (Figure 4). Voiding a manufacturer’s warranty is less of a concern than the potential for failures in systems that cannot self-seal such fastener penetrations.

wrb_Fig 4 - tie[5]
Figure 4: This type of fussy detailing around brick ties is required by several WRB manufacturers, but it is not realistic. The cost, sequence of construction, and scheduling burdens would cause contractors to choose another product—or worse, not waterproof these frequent penetrations through the WRB as specified.

Ease of installation
Installers want WRB products that are easy and fast to install—to be economical, they want to avoid mixing multiple components, long drying times, multiple accessories, or fussy sequencing requirements. Keeping systems to the fewest products (such as a primary membrane for the field of the wall and a single accessory for detailing) reduces installation time and the possibility of errors.

The test products were installed by a specialty contractor, whose observations and comments indicated there was a wide range of difficulty in applying the products.

UV exposure rating
There are several new WRB products that are not sensitive to ultraviolet (UV) light, which would therefore make them good candidates to be used behind rainscreen cladding. These sophisticated, engineered cladding systems feature pressure-equalized compartments behind a veneer with permanently open joints, so it is important sunlight not damage the membrane through the joints.

For more common cladding systems, it is important to pay attention to the manufacturer’s published maximum exposure time for WRBs before they are covered with cladding. Interestingly, they each publish a single time limit (typically one to 12 months), but obviously the actual exposure during that period would vary depending on the climate and season. Therefore, the risk of prolonged exposure is uncertain.

Overall, the mockup specimens appear to be performing well, but some damage was already observed before reaching the claimed exposure limit. Most of the test specimens were first exposed in the winter; it can be expected the damage due to UV exposure would be worse if the testing started in the summer.

Contractors want longer exposure time, and the newest products being introduced claim to have this capability. This trend may tempt manufacturers into a marketing ‘arms race’ of sorts. During this research, some manufacturers changed their exposure rating without changing the formulation. The testing described below was designed to evaluate both the current exposure ratings and any increased timeframes claimed in the future. Although longer exposure time benefits the contractor, it is not clear benefit accrues to the owner.

Fire resistance
Performing fire testing is beyond the study’s scope, but the manufacturers’ literature typically addresses this requirement. With recent changes in code requirements (and more expected with the next IBC), water-resistive barriers are now being scrutinized for fire resistance in wall assemblies.

WRBs that are combustible and placed on a building over 12.2 m (40 ft) tall having a Type I?IV construction must be tested in an assembly that passes National Fire Protection Agency (NFPA) 285, Standard Method of Test for the Evaluation of Flammability Characteristics of Exterior Non-load-bearing Wall Assemblies Containing Combustible Components. A recent trend appears to be WRB manufacturers partnering with various other component manufacturers (including insulation, masonry anchors, and cladding) to create complete wall assemblies meeting this requirement.

Mockup test design
In the first phase of this study, WRB products were tested as part of a complete system. The research outlined above guided the design of mockup test specimens that represent most of the difficult details encountered on a typical project. Each specimen consists of a 0.9 x 0.6-m (3 x 2-ft) simulated wood stud wall segment with the WRB placed on plywood sheathing (except one product with an integral sheathing).

Each specimen contained multiple details a WRB system must be able to handle, as shown in Figure 5:

wrb_Fig 6 - Specimen Accessory Layout[6]
Figure 5: The design of the mockup test specimens included many common details to explore the capability of each WRB system to seal them, as well as the manufacturer’s instructions. Accessory products were applied in strict accordance with the WRB manufacturers’ requirements. Image courtesy Classic Constructors LP

The details were sealed as required by each manufacturer—not based on what is commonly done in the field (Figure 6). While some of those requirements seem burdensome, the initial testing is intended to evaluate the system as recommended by the manufacturer.

The specimens were hung on metal racks facing solar south to be subjected to high solar radiation (in addition to wind and rain). They were placed vertically to simulate typical wall construction. Laying them back at an angle would have increased solar radiation to significantly accelerate the weathering, but it would eliminate another significant factor in performance: gravity. WRB products are often observed in the field to sag after exposure, which tugs on the flashings (Figure 7).

wrb_Fig 7 - detailing[7]
Figure 6: As its name implies, the purpose of a water-resistive barrier is to stop liquid water from penetrating through a wall section. However, more products are sold as air barriers, with a corollary benefit of serving as a WRB. Image courtesy Classic Contractors LP

Once the specimens are exposed for their documented UV exposure rating, they are partially covered with a cement board to represent siding. This cladding is attached with screws, which tests additional fastener penetrations while also allowing the siding to be removed for observations. Only the top half of each specimen is covered; the bottom remains exposed to observe how the products deteriorate after the specified exposure time.

Clear rigid plastic was installed over the back of the specimens to prevent direct water entry, while allowing monitoring of any moisture penetration or damage from the front (product side). A metal coping protects the top of each specimen, but it is not sealed to the cladding—water can enter above the cladding so the WRB will be wetted by rain even after the cladding is applied (the essence of a WRB).

wrb_Fig 8 - sag REPLACEMENT PHOTO[8]
Figure 7: The flashing sagged at the bottom of this wall. Gravity is a factor in WRB system durability, so long-term test specimens at The Durability Lab are therefore vertically oriented. Photo courtesy Buildings Diagnostics

Besides the large mockup specimens, additional small ones are being tested for material properties, including adhesion, that are beyond this article’s scope. Other small specimens are used for the nail sealability testing described below.

Improving durability requires addressing long-term behavior, which is typically related to weathering and chemical formulation. These aspects of a product’s ‘design life’ will be evaluated during the long-term testing described above; a future article will summarize those findings after sufficient exposure. Some premature failure has already been observed, which indicates the need to be vigilant in product selection regarding claimed exposure ratings.

The research and mockup testing also were designed to evaluate a product’s ‘service life,’ which is often governed by the original installation. The results so far indicate the industry needs better information, instructions, and details from manufacturers. To be economical and durable, an ideal WRB system would include only a few required products that are easy to install, cure rapidly, adhere well, seal around fastener holes, and withstand UV exposure for an extended time. None of the products tested so far met all of these criteria.

The industry also needs standard test methods and product specifications that are applicable to WRBs (and air barriers). Some of these are in development by professional societies, but those will take time to develop. Meanwhile, specifiers should be aware the tests cited by manufacturers may not be applicable to the performance criteria needed for a WRB. Most notably, a product’s claimed ability to seal around fasteners should be scrutinized—this study revealed the test methods and published information are generally unreliable regarding this fundamental property of WRBs.

Note: The authors gratefully acknowledge the continuing support and leadership of David W. Fowler, PhD, PE—the faculty advisor for the research being performed at The Durability Lab, a testing center at The University of Texas at Austin.

 Nail Sealability
wrb_Fig 5 - nail test[9]

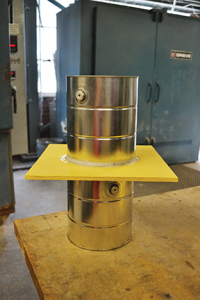

ASTM nail sealability testing for roofing products is often cited by water-resistant barrier (WRB) manufacturers. This severe test consists of checking for leaks after driving two nails through a waterproofing product applied to plywood, filling a cylinder with 125 mm (5 in.) of water, and chilling the entire specimen for three days. (An environmental chamber at The Durability Lab is visible in the background.) Image courtesy Building Diagnostics

One of the most important—and least understood—durability characteristics of a waterproofing material is its ability to seal around fastener penetrations. Since there is no industry standard for water-resistive barriers (WRBs), this property is commonly measured by ‘borrowing’ a roofing material specification: ASTM D1970, Standard Specification for Self-adhering Polymer Modified Bituminous Sheet Materials Used as Steep Roofing Underlayment for Ice Dam Protection. Many WRB manufacturers publish that their products pass this test; others are silent about nail sealability.

ASTM D1970 was changed in August 2014 to reference a procedure in ASTM D7349, Standard Test Method for Determining the Capability of Roofing and Waterproofing Materials to Seal Around Fasteners. Although better than the previous method, this is still a ‘borrowed’ roofing standard that requires modification for testing WRBs.

The revised test method, which is still severe, requires placing the membrane onto a piece of 12-mm (15?32-in.) thick plywood, 300 x 300 mm (12 x 12 in.). Two roofing nails are driven into the center of the board until they are flush with the membrane. Under the old method, the nails would then be tapped back off of the board 6 mm (1?4 in.), but now they remain flush.

After cutting its bottom out, a 4-L (1-gal) paint can is placed atop the membrane over the nails and sealed with silicone. The can is filled with water to a height of 125 mm (5 in.). ?An additional can is placed underneath to catch any leaking water, and this entire specimen is put in a temperature controlled chamber at 4 ± 2 C (39.2 F ± 3.6 F) for three days.

After testing, the specimen is removed to observe any water penetration underneath the membrane, on the plywood, on the shanks of the nails, and in the can beneath the plywood. If moisture is documented in any of these locations, then the test is considered a failure.

Fluid-applied membranes cannot explicitly follow this procedure because it requires the membrane to be removed from the plywood substrate for observation. Additionally, the test method assumes an intervening material (typically a shingle for roof product testing) is placed between the nail and the specimen. It is common to modify the test method to suit the product being tested, but it is difficult to find out what modifications manufacturers made.

The new procedure in ASTM D1970 now requires all completed tests to be reported as a ‘pass’ or ‘fail.’ This seemingly straightforward requirement addressed a significant problem: some manufacturers were performing tests until reaching two passing results, and only reporting those two results. Specifiers should confirm with the manufacturers whether products claiming to “pass D1970” included failed tests and what deviations were made from the latest published test method.

The standard does not explicitly define ‘self-sealing,’ so it is useful to compare similar terms. One manufacturer defines self-sealing as “Capable of sealing itself, as or after being pierced.” This is the closest term for the property needed in a WRB—the ability to self-seal around a fastener penetration without an additional application procedure. That same company defines a ‘self-healing’ material as one with “the structural incorporated ability to repair damage caused by mechanical usage over time.” This is not a common feature of WRB products, but the term is often erroneously used as a synonym for self-sealing.

Another manufacturer refers to a similar term, ‘self-gasketing,’ as “the membrane’s ability to be cut by the threads of a self-drilling screw, then seal under compression (i.e. the screw head compresses the membrane as it is seated providing a positive seal).” This term represents an evolving trend in the industry to downplay intrinsic self-sealing capability in favor of extrinsic gasketing provided by another material compressed over the penetration. Some published requirements for products to achieve self-gasketing would not be possible in an actual wall assembly, so specifiers should be aware of the changing terminology and its implications.

Clearly, these definitions express different characteristics of a membrane’s nail sealability either with the nail, without the nail, or based on the compression of the fastener, respectively. Such a distinction implies whether a secondary sealant, protective coating, or intervening material is needed to seal around fasteners.

ASTM D1970, together with its reference to D7349, provides a direct measurement of self-sealing capability. It is a severe test, it was developed for roofing products, and some modifications are needed to test WRBs. These factors may explain why the standard is not cited by all manufacturers; however, self-sealing is crucial, and should be evaluated for any WRB.

ASTM nail sealability testing for roofing products is often cited by water-resistant barrier (WRB) manufacturers. This severe test consists of checking for leaks after driving two nails through a waterproofing product applied to plywood, filling a cylinder with 125 mm (5 in.) of water, and chilling the entire specimen for three days. (An environmental chamber at The Durability Lab is visible in the background.)

Beth Anne Feero, EIT, is a graduate student studying architectural engineering at the University of Texas at Austin. She serves as the graduate research assistant for The Durability Lab, which researches and tests the durability of building components, identifying factors causing premature failure. She can be reached via e-mail at bfeero@buildingdx.com.

David H. Nicastro, PE, is the founder of Building Diagnostics Inc., specializing in the investigation of problems with existing buildings, designing remedies for those problems, and resolving disputes which arise from them. He is a licensed professional engineer, and leads the research being performed at The Durability Lab—a testing center established by Building Diagnostics at the University of Texas at Austin (UT). He can be reached by e-mail at dnicastro@buildingdx.com.
