Power-operated doors: Maintaining safe egress with updated standards

Michael Tierney

The safe and practical use of electric locking systems, accessibility, touchless entry, and an immediate unencumbered means of egress are among the reasons to select a power-operated door within the envelope of a public building. Power-operated doors are available in a wide variety of designs and styles to fulfill the requirements of the building envelope and interior.

Qualities to consider when specifying a power-operated door include reliability, safe egress, accessibility, energy conservation, security, and aesthetics. The Builders Hardware Manufacturers Association (BHMA) is the American National Standards Institute (ANSI) accredited developer for power-operated door and hardware standards. The association has published four different standards to cover the breadth of power-operated door products:

  • ANSI/BHMA A156.10: Power-Operated Pedestrian Doors
  • ANSI/BHMA A156.19: Power Assist and Low Energy Power-Operated Swinging Doors
  • ANSI/BHMA A156.27: Manual and Power-Operated Revolving Doors
  • ANSI/BHMA A156.38: Low Energy Power-Operated Sliding and Folding Doors

Every standard follows a set schedule for periodic review, to reassess and improve the content and requirements. ANSI/BHMA A156.10 was revised in 2017, and the remaining three standards were revised in 2019.

The safe and practical use of electric locking systems, accessibility, touchless entry, and an immediate unencumbered means of egress are among the reasons to select a power-operated door within the envelope of a public building. Photo courtesy the Carol M. Highsmith Archive, Library of Congress, Prints and Photographs Division

Power-operated pedestrian doors

ANSI/BHMA A156.10 covers power-operated doors intended for regular pedestrian use. The function of these doors imply they will open automatically when approached by pedestrians and, in some cases, small vehicles. These include swinging doors, sliding doors, and folding doors with accessories such as guide rails, motion detectors, knowing act door activation devices (e.g. an automatic door push button), control mats, and presence sensor monitors.

Entrapment protection for user safety is another important aspect of this standard. This section of ANSI/BHMA 156.10 is intended to reduce the chances of an automatic door closing on an object or person. Entrapment protection varies depending on the type of door. Sliding doors require a specific closing speed at which the kinetic energy is calculated using the weight of the door, and the closing latch check can be no less than 50.8 mm (2 in.) from the door being completely closed.

Other entrapment protection specifications for sliding doors can include a breakaway device, as well as a specific amount of time the door must remain fully open before closing. For swinging and folding doors, entrapment protection includes backchecks; opening and closing times depending on angles, distance, and weight; hinge opening size to minimize pinch points; and the minimum force required to stop or manually open the automatic doors.

Aside from entrapment protection, there are also breakaway egress tests, including salt spray and cycle tests. For the salt spray test, a sample of the hardware is subjected to salt fog for 168 hours to ensure the finish and critical parts of the assembly are resistant to corrosion and retain their functionality. The cycle test is done with the largest specimen listed by the manufacturer. It must undergo 300,000 cycles at a rate of five to eight per minute—with 1,000 breakout cycles every 50,000 cycles—and utilize unadjusted breakaway devices.

Knowing act activation references the action of triggering a mechanism for a door operator, such as pressing a switch with the knowledge it will open the door in connection with said switch. Knowing act specifications within this standard for each door type indicate the triggering mechanism must:

  • Be within view of the automatic door.
  • Have a height between 0.9 and 1.2 m (3 and 4 ft).
  • Remain accessible from the swing, slide, or fold side when the door is opened.
  • Not be located in a position where the user would be in the path of the moving door.
  • Keep the door fully open for a minimum time delay of five seconds after release of the triggering mechanism, or longer depending on the distance from the device to the center of the door.
  • Be equipped with safety zones, monitoring, time delays, and guide rails as required for the type of door.

Further requirements are outlined by door type, and alternative guidelines are set for double-egress doors.

Signage is also an important component for automatic doors. ANSI/BHMA 156.10 indicates the necessary font, color, size, and visibility for various power-operated pedestrian doors. For example, all swinging, sliding, and folding doors shall be equipped with “Automatic Door” signage visible from both sides, with letters a minimum of 12.7 mm (0.5 in.) high. Other signage includes “In Emergency Push to Open,” “Caution Automatic Door,” “Do Not Enter,” and directional arrows depending on the door type.

ANSI/BHMA 156.10 neither accounts for low-energy power-operated doors, nor includes fire exits and emergency doors. Additional specifications for this standard include control mat layouts, sensor zones, guide rail details, and further knowing act door activation device installation requirements.

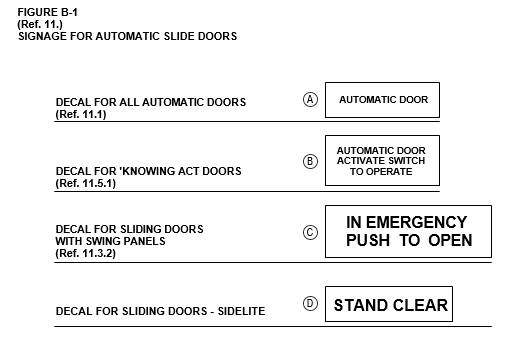

Figure B-1 (Ref. 11.) – Examples of signage for automatic slide doors. Images courtesy Builders Hardware Manufacturers Association (BHMA)

Power assist and low-energy power-operated swinging doors

A low-energy power-operated door is activated only by a knowing act, adheres to the maximum amount of kinetic energy allowed by ANSI/BHMA A156.19, and is closed by a power mechanism or other means. These doors are intended to improve accessibility. The Americans with Disabilities Act (ADA) requires hardware to comply with ANSI/BHMA A156.19 if a building utilizes power assist and low-energy power-operated swinging doors. The most recent publication of this standard includes a revised definition of “knowing act,” to incorporate methods such as cell phone apps.

Unlike ANSI/BHMA 156.10, ANSI/BHMA A156.19 addresses power assist and low-energy power-operated doors, but only for automatic swinging doors. The swinging door operators in this standard are for pedestrian use and some small vehicular use.

Power assist doors can be operated by pushing or pulling the door, and a separate switch is permitted to put the door in power assist mode. A minimum time delay of five seconds is required, there is a minimum number of seconds for a door’s closing time, and a maximum force is required to stop and manually open a door.

Low-energy power-operated swinging doors also require a knowing act, usually by a wall-mounted switch. The switch location of the knowing act has been adjusted in the most recent publication. If the activating mechanism is located 2.1 m (7 ft) or more from the center of the door, there shall be an additional time delay of two seconds for each additional foot. Opening shall take three seconds or longer to reach either an 80-degree angle or backcheck, and backcheck cannot occur before a 60-degree angle. This section of the standard mandates a time delay where the door is fully open for no less than five seconds unless push-pull activation is used, which is a minimum of three seconds. Other guidelines for low-energy power-operated swinging doors include closing and the maximum force for closing prevention and manual opening.
